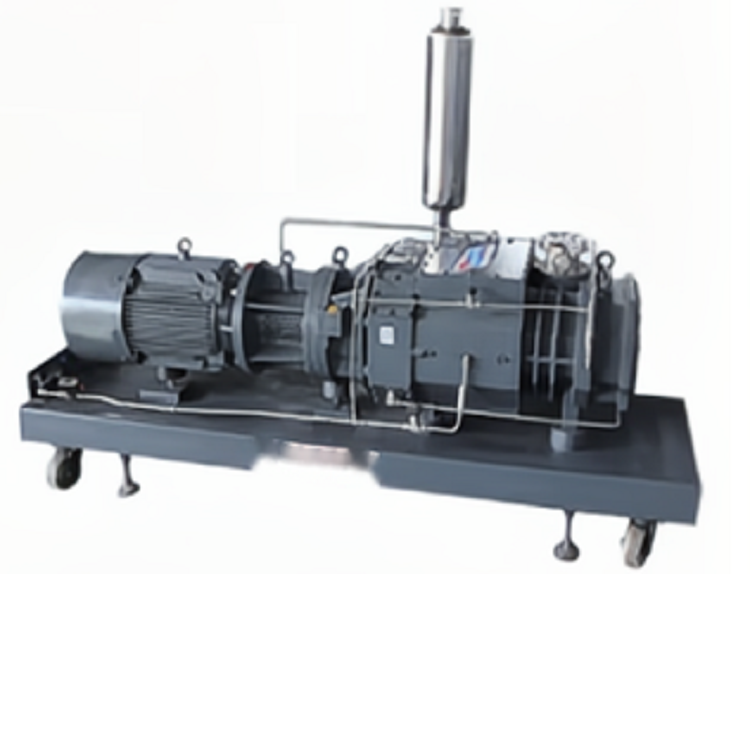

Dry oil-free screw pump TXLGB800 SH water-cooled dry screw vacuum pump motor power 18.5KW

Product Description

Dry screw vacuum pumps operate with two screw rotors rotating in opposite directions. This traps the medium to be pumped between the cylinder and the screw chambers and transports it to the gas discharge. The advanced screw design results in lower electric energy consumption compared to standard screw designs. It also results in a lower heat load of the compressed gas.

 Cooling can be achieved through a high performance air cooling method eliminating the need of cooling water or indirect cooling method resulting in uniform temperatures throughout the pump body, eliminating cold spots and providing a thermally stable water jacket. The advanced screw design allows for best-in-class hydrogen pumping capabilities. Water cooling can take place in form of both direct water cooling or radiator cooling with air-cooled heat exchangers.

Performance advantage

Energy saving: lower power consumption than similar products;

Reliable: dry structure pump chamber, mechanical varacor compression, to achieve stable process vacuum;

Environmental protection：Zero sewage discharge, no environmental pressure, save the cost of sewage treatment;

Efficiency: no pollution of solvent, easy to recover solvent, increase the benefit;

Easy maintenance: no need to do special maintenance, basic no maintenance costs, save trouble, worry;

Cooling: water saving than similar products, and the cooling temperature requirements are not harsh;

Anticorrosion: can choose nickel phosphorus Hastening alloy coating or matching chin alloy and other overall material.
