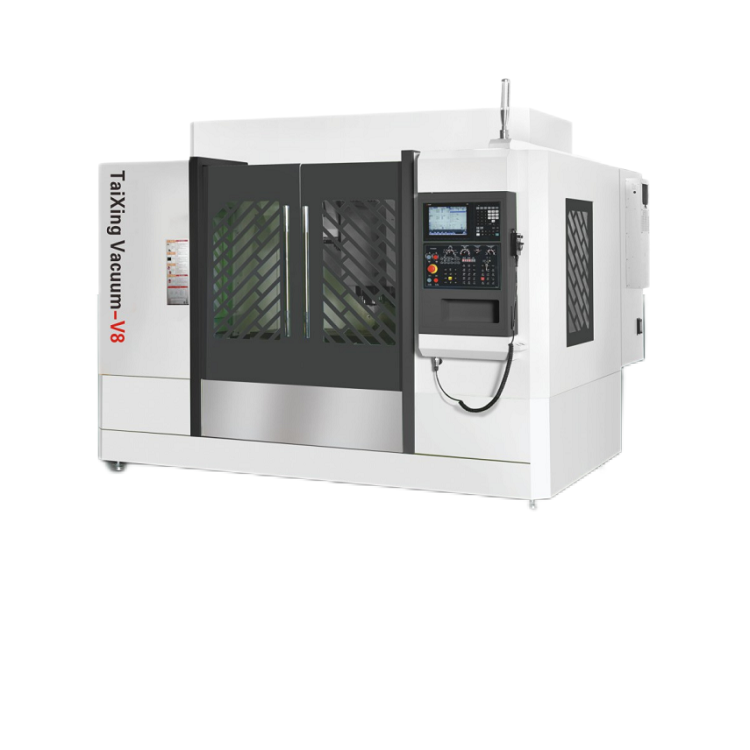

· The main structure of the machine is made of high-grade mihanna castiron,
with a solid machine structure thatimproves the compression resistance of
the castings;
·Direct connection spindle,high speed, ow vibration,low noise,Iow temperaturerise.
Can withstand long-term high-speed machining operations;
·The three-axis adopts a roller type linear rai slide,which can provide betterrigidity and
load capacity;
· Three-axis straight junction motor transmission, completely eliminating backlash;
· High speed tool changing mechanism design, combined with preinduction controland
eficient cutting system, for tool changing work.
| Mechanical characteristics |
| Items |
Unit |
V-8 |
V10 |
V-1370 |
| Stroke |
| X-axisstroke |
mm |
800 |
1000 |
1300 |
| Y-axis stroke |
mm |
500 |
600 |
700 |
| Z-axis stroke |
mm |
550 |
600 |
700 |
Distance frgm spn
nnsatoworktable a |
mm |
120-670 |
120-720 |
120-820 |
pisla Indle
cente |
mm |
605 |
655 |
770 |
| Vorkbench |
| Norktablesize |
mm |
1000*550 |
1100*600 |
1400*700 |
| Maximum loadcapacity |
kg |
450 |
450 |
700 |
| T-groove size |
mm |
5*18T*80 |
5*18T*100 |
5*18T*125 |
| Spindle |
| Speed (special) |
rp.m |
12000 |
12000 |
12000 |
Spindle speed(standard
contiguration |
r.pm |
12000-15000 |
12000-15000 |
12000-15000 |
| spindlemotor |
kw |
7.5 |
11 |
11 |
| Wain spindle end specifications |
|
BT-40 |
BT-40 |
BT-40 |
| Feed |
| XYZ axis rapidfeed |
mm/min |
45000 |
36000 |
36000 |
| Three-axiscutting feed |
mm/min |
1-10000 |
1-10000 |
1-10000 |
| Others |
| Three-axis motor power |
kw |
02/2/3 |
03/3/3 |
03/3/3 |
| Positioning accuracy |
mm |
±0.005/300 |
±0.005/300 |
±0.00500 |
| Repeatability |
mm |
±0.003/300 |
±0.003/300 |
±0.00300 |
| Controllers |
|
FANUC/MITSUBISHI |
| Cutting water pump |
HP |
1/2 |
1/2 |
12 |
| Electricity demand |
kva |
20 |
25 |
30 |
| Air pressure specification |
bar |
≥0.6MPA |
≥0.6MPA |
≥0.6MPA |
| Machineweight |
kg |
4500 |
5500 |
8500 |
| Machine dimensions |
mm |
2500×2300×2500 |
2700×2400×2600 |
3300×2600×3000 |
| *The specifications may change with theimprovement of quality,and we apologizefor anyinconvenience caused. |
|
