CNC machining center
5 Axis-UC400 high-speed five-axis machining center
5 Axis-UC400 high-speed five-axis machining center

5 Axis-UC400 high-speed five-axis machining center

Product application This machine is widely used in various production, such as plate, box, frame...... Roughing and finishing, various procedures such as milling, boring, drilling, rigid tapping, reaming and reverse drilling, are processed in the machining industry.
  • Type :

    5 Axis-UC400

Main features:

1. Advanced cast iron structure and aging treatment, super stability, reliability, high precision, longer machine life.

2. X axis and Y axis adopt two-axis heavy-duty (roller type) linear guide rail structure.

Forced lubrication is used to reduce motion resistance, avoid crawling at low speed, ensure high accuracy and long machine life.

3. Z-axis adopts four straight and vertical motion guide rail structure.

Dual liquid nitrogen balanced cylinders are used for vertical Z-axis movement to reduce unloading torque and ball screw wear and maintain stability of ball screw accuracy.

4.X/Y/Z axis uses high precision and strength and large pitch ball screw to provide fast feed speed machines.

The servo motor is connected with the ball line to tighten the coupling.

Servo motor directly to the ball wire rod to ensure the machine excellent positioning accuracy.

5. Ball screw adopts pretensile structure, which reduces the furthest precision deformation due to heat.

6. Taiwan brand spindle unit, high speed, high precision, good rigidity.



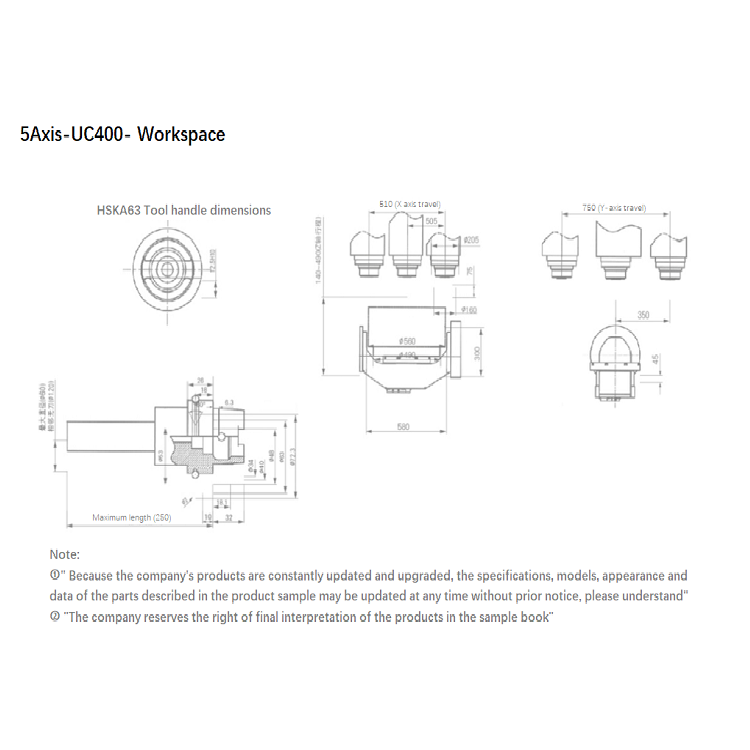

Technical parameters and configuration list



I. Mechanical parameter table



project

unit

5Axis-UC400

X / Y / Z axis stroke

mm

500×580×400

Distance from nose end of spindle to bench (when axis A is at 0 degrees)

mm

130-530

bed dimension

Mm

φ350

Maximum workbench load-bearing

Kg

100

principal axis





Spindle cone handle



BT40

The maximum speed of the main shaft

Rpm

18000

Spindle power

Kw

15KW

The X / Y / Z-axis motor

Kw

1.8KW/1.8KW/1.8KW

The X-axis moves fast

Mm/min

15000

Y-axis moves movement

Mm/min

15000

Z-axis moves movement

Mm/min

15000

A-axis fast feed

Rpm/min

80

C-axis fast feed

Rpm/min

150

X / Y / Z, axis positioning accuracy

Mm

± 0.005 / 300mm (JIS Standard)

A / C axis positioning accuracy

arcsec

6 Angle seconds

cutter





The maximum length of the tool

Mm

150

The maximum weight of the knife

Kg

8

tool magazine





Knife library type



Knife arm knife library

Number of tool tools



24

The maximum diameter of the tool

Mm

Φ80

else





Air pressure source requirements

kg/cm2

6

Mechanical floor area

Mm

3200*2800*2600

Machine tool power demand

Kw

20

Total weight of machine tool

kg

6000

2. Turn table parameters



Torque motor, cradle five axis





Axis A (tilt axis)





rated speed

rpm

60

rating torque

N.m

421

power rating

kw

2.65

Brake pressure

MPa

0.5-0.6

Brake speed up torque

N.m

≥700

C axis (rotary shaft)





rated speed

rpm

150

rating torque

N.m

82

power rating

kw

1.3

Brake pressure

MPa

0.5-0.6

Brake speed up torque

N.m

≥120

else





Disk diameter

mm

350

Maximum workpiece diameter

mm

590

The wing angle of the tilt axis

deg

±110°

Key slot width

mm

12H7

Workpiece load weight

kg

100







3. Key component suppliers



Component category

Part name

brand

lathe bed

X/Y/Z foundry goods

T aixing

Line rail

X axle

Taiwan Upper Silver (Roller H Class 35 wide)

Line rail

Y axle

Taiwan Upper Silver (Roller H Class 35 wide)

Line rail

Z axle

Taiwan Upper Silver (Roller H Class 35 wide)

lead screw

X/Y/Z axle

Taiwan upper silver (outer diameter 32mm / C3)

A/C revolving stage



Hao zhi

principal axis

Electric spindle

Good ability / great success

X / Y / Z triaxial bearing

bearing

NSK/THT

The screw pre-pull system

The screw is pre-pulled nuts

Taiwan surplus tin

Centralized lubrication

Oil lubrication

Too star

Cooling mode of spindle

Temperature water cooling

Riko

lighting system

fluorescent lamp

LED

The X / Y / Z triaxial drive



Taiwan new generation of 1800W

A / C, shaft drive



Taiwan new generation DD1000W

The X / Y / Z-axis optical ruler



/

The A / C-axis optical ruler



Renishao RA26BAA100B10A 26

Electrical components

controller

Taiwan's new generation

frequency transformer

far and wide

X / Y / Z, the shaft servomotor

Taiwan new generation 1.8KW, absolute value motor

Hand-shake pulse generator



transformer

China

Relay module

OMRON

Electromagnetic contactor / electromagnetic switch

Schneider

Close switch

OMRON

pneumatic component



Jinkoi, Japan

Electric control box constant temperature air conditioning



Riko

Spindle constant-temperature water cooler



 Riko

If any supplier can not supply, it will be replaced with the brand of the same quality.

Iv. Standard configuration of machine tools:

  1. Taiwan new, generation five-axis CNC system (15-inch 220MA-5)
  2.   X, Y, Z three-axis Taiwan new generation servo drive
  3. A, C axis Taiwan new generation DD servo drive
  4.  A, C axis Renisau 5 corner second circular grating
  5.  X, Y, Z three-axis grease lubrication system
  6.  Spindle constant-temperature cooling system
  7.  BT40 24 Bitknife library
  8.   Machine tool cleaning water gun
  9.  Machine tool cleaning wind gun
  10.      LED, work light
  11.  LED, alarm lamp
  12. Tool case and foot handling screws
  13.  transformer
  14. Mechanical, electrical, and operation instructions
  15. Electric box constant temperature air conditioning
  16. Three-axis slide rail telescopic shield
  17.  Precision to knife in









Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products

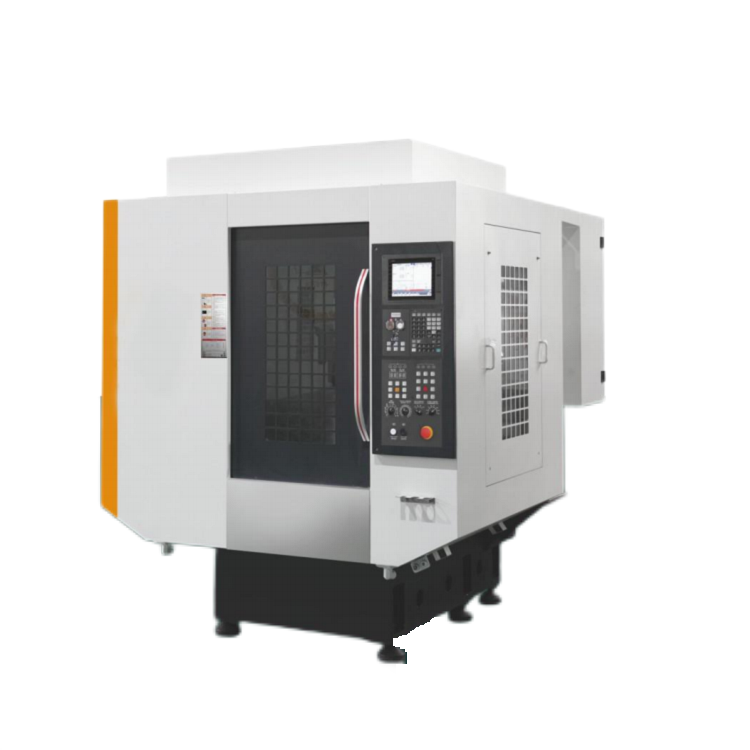

Three-axis high-speed drilling machine TX-T600 three-axis CNC machining center
Product application This machine is widely used in various production, such as plate, box, frame...... Roughing and finishing, various procedures such as milling, boring, drilling, rigid tapping, reaming and reverse drilling, are processed in the machining industry.
more details

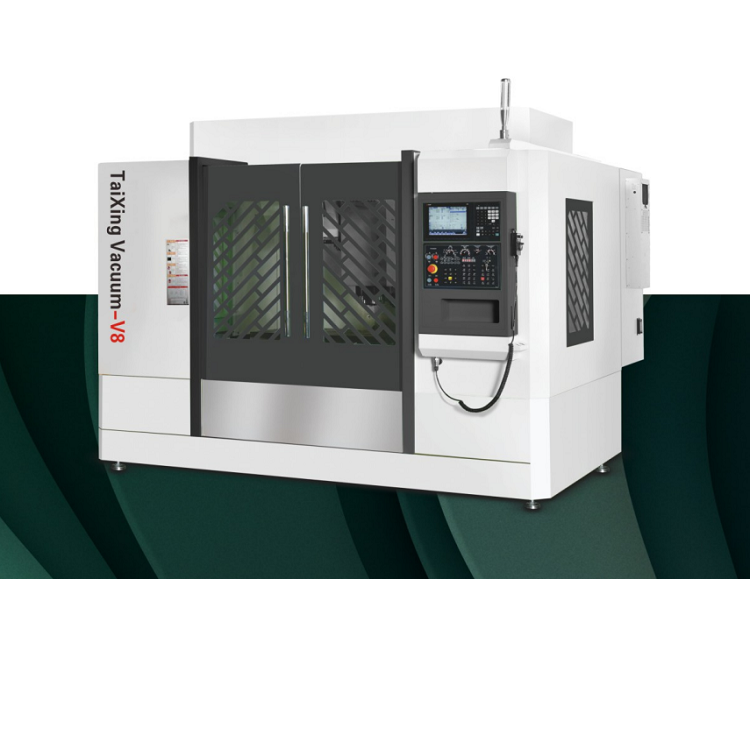

HIGH-SPEEDHIGH-PRECISION PARTS MACHINING CENTERS TX-V8
