Product features:

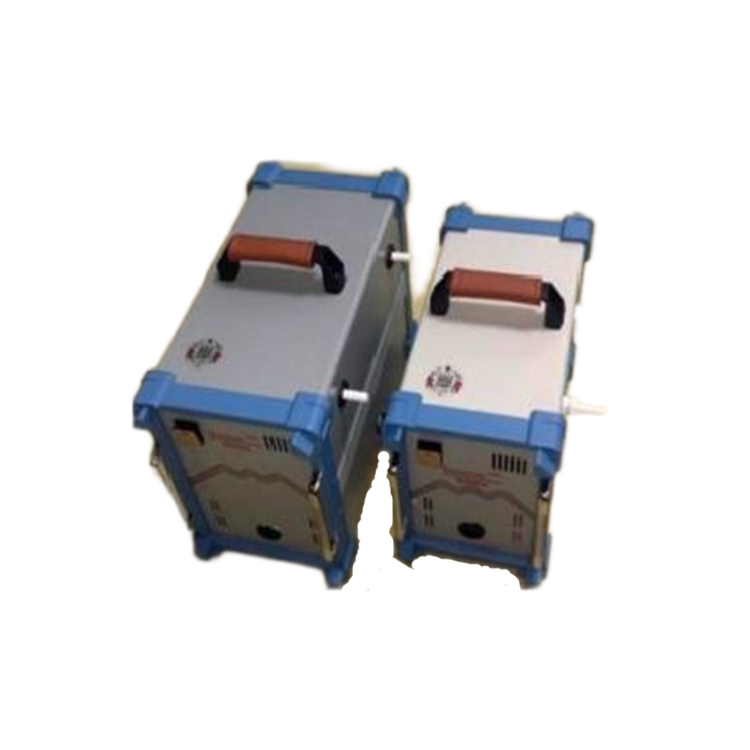

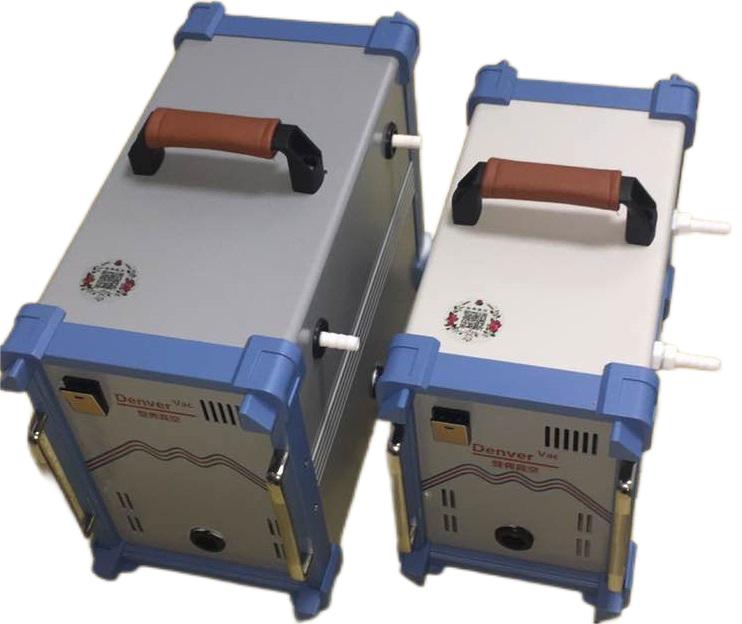

Box-type structure, safe operation, low noise
Dry operation, to ensure no oil pollution, green environmental protection
Durable and suitable for continuous operation
Motor with 4uf capacitor with overheat protection
The safety plug protects the circuit part; The overflow material complies with ATEX II 2G IIB+ H2T3X explosion-proof requirements

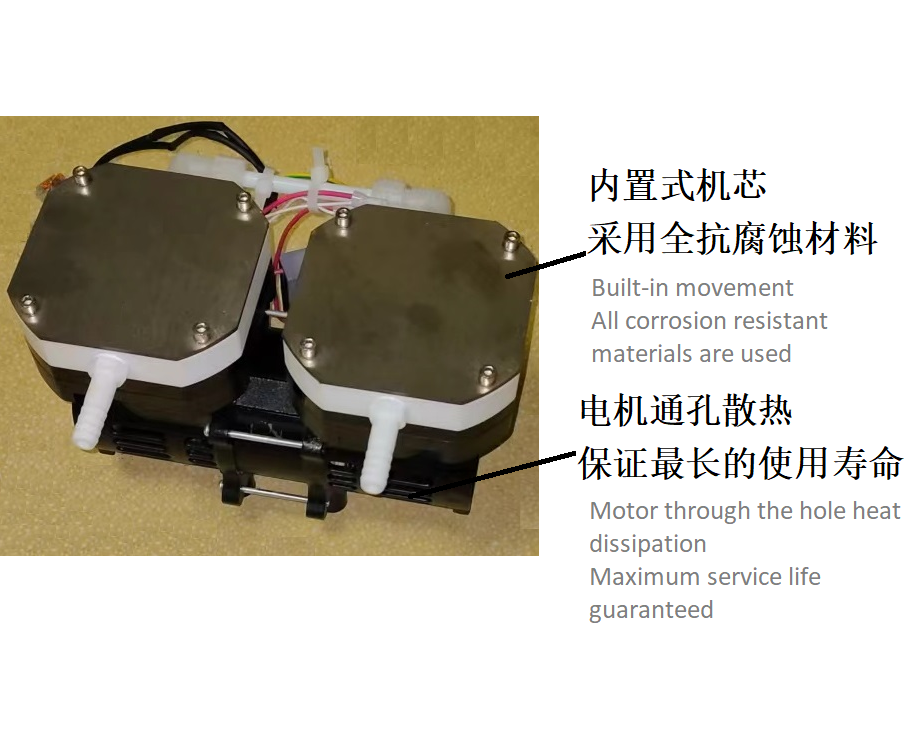

The diaphragm is umbrella-shaped thickened EPDM rubber coated with PTFE, and the gas contact part is PTFE material and PTFE coating, which has very strong chemical corrosion resistance
The selection of low-temperature elevator motor and the internal circulation of multiple ventilation holes and brushless fans in the box structure ensure long-term stable use
Compared with the traditional laboratory circulating pump (limit vacuum 30mbar, pumping speed 10L/min), the performance is significantly improved. Manual vacuum regulating valve, vacuum measuring instrument, etc.
Product parameters:
|
model |
TXCE 822 |
TXCE 838 |
TXCE 5025 |
TXCE 5038 |
TXCE 240 |
TXCE 860 |
TXCE 275 |
TXCE 8110 |
|
Pump head form |
Secondary secondary pump head |
two stage |
two stage |
two stage |
three-level |
three-level |
three-level |
three-level |
|
Two pump head |
Two pump head |
Two pump head |
Four pump head |
Four pump head |
Four pump head |
Four pump head |
||
|
ultimate vacuum |
8mbar |
8mbar |
50mbar |
50mbar |
2mbar |
8mbar |
2mbar |
8mbar |
|
(800Pa) |
(800Pa) |
(5000Pa) |
(5000Pa) |
(200Pa) |
(800Pa) |
(200Pa) |
800Pa) |
|
|
The suction speed |
22 L/min |
38L/min |
25L/min |
38L/min |
40L/min |
60L/min |
75L/min |
110L/min |
|
Conventional application |
Spinning evaporator |
Draw filter, exhaust |
Spinning evaporator |
|||||
|
Centrifugation concentration |
Centrifugation concentration |
|||||||
|
vacuum drying |
vacuum drying |
|||||||
|
Draw filter, exhaust |
Draw filter, exhaust |
|||||||
|
Acid and alkali resistant corrosion |
||||||||
|
Membrane size |
diameter |
diameter |
diameter |
diameter |
diameter |
diameter |
diameter |
diameter |
|
68mm |
106mm |
68mm |
106mm |
68mm |
68mm |
106mm |
106mm |
|
|
|
100W |
130W |
100W |
130W |
205W |
205W |
265W |
265W |
|
(220V) |
(220V) |
(220V) |
(220V) |
(220V) |
(220V) |
(220V) |
(220V) |
|
|
noise |
47dB(A) 48dB(A) 47dB(A) 48dB(A) 49dB(A) 49dB(A) 50dB(A) 50dB(A) |
|||||||
|
weight |
9.5 kg |
10.5 kg |
9.5 kg |
10.5 kg |
18.5 kg |
18.5 kg |
19.5 kg |
19.5 kg |
|
joggle |
NW 8-10mm (inner diameter 8 to 10mm tube) |
|||||||
|
Size (wide, long and high |
320/175/205 mm |
380/190/260 mm |
320/175/205 mm |
380/190/260 mm |
380/480/260 mm |
380/480/260 mm |
380/480/260 mm |
380/480/260 mm |

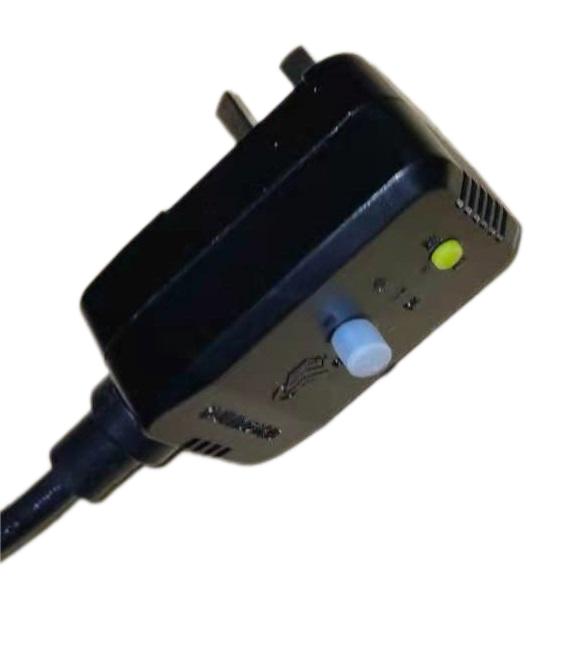

V2.2 version released on 2021.05.01 Upgrade safety power plug, any motor overload, overcurrent, leakage problems, immediately power off within 0.1 seconds; Together with the overheat protection capacitor, the vacuum pump forms a double safety protection.
