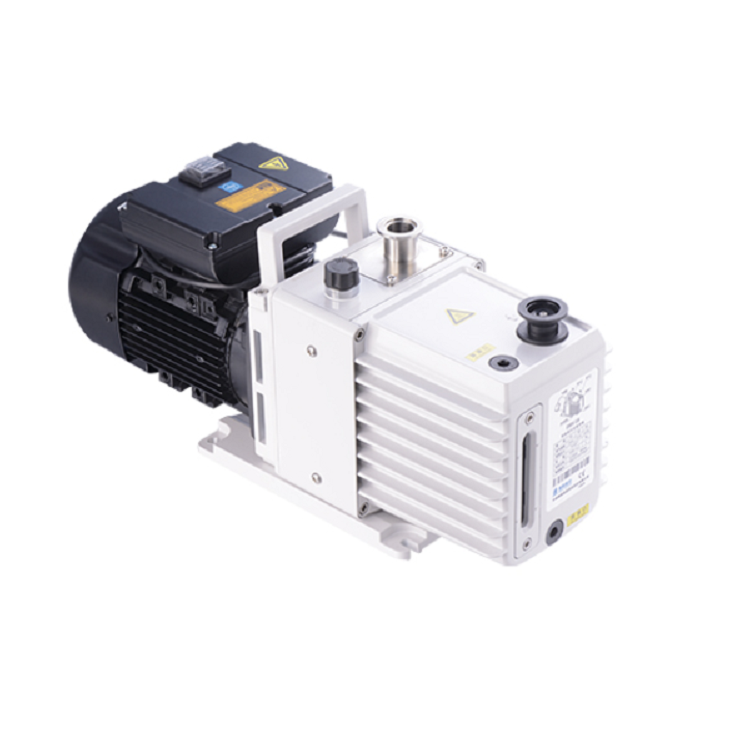

TX-65D double stage vane vacuum pumps Excellent and reliable double - stage rotary vane vacuum pump
Specification parameters
Technical parameter
|
Unit
|
Frequency
|
TX-65D
|

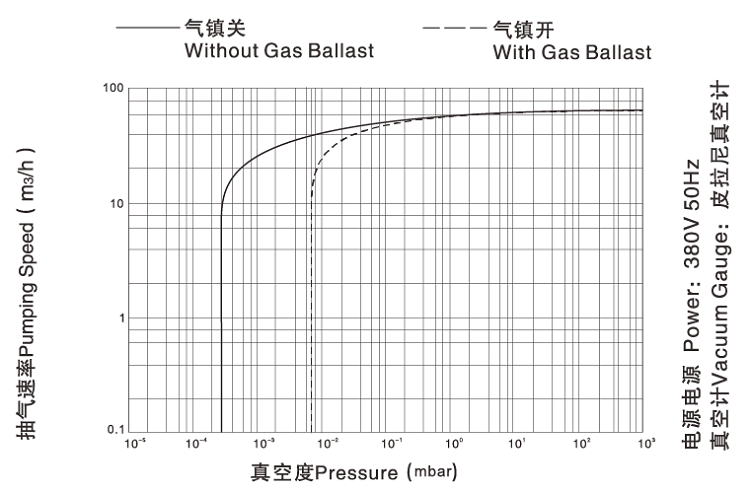

Pumping speed
|
m3/h
|
50 Hz
|
65
|
Limit partial pressure
|
mbar
|
50 Hz
|
4×10-4
|
Limit total pressure
|
mbar
|
50 Hz
|
3×10-3
|
Open limit total pressure
|
mbar
|
50 Hz
|
6×10-3
|
Water vapor permitted tolerance
|
mbar
|
50 Hz
|
30
|
Nomimal size
|
DN(mm)
|
50 Hz
|
KF40
|
Noise
|
(ENISO2151)
|
dB(A)
|
58/60
|
Oil filling level(Max./min.)
|
L
|
|
5.0/4.6
|
Weight(not filled )
|
kg
|
|
83
|
Operating temperature(lowest/highest)
|
℃
|
|
5/40
|
Power
|
W
|
50 Hz
|
2200(380V)
|
Total height of pump
|
mm
|
|
370
|
Total length of pump
|
mm
|
|
765
|
|
