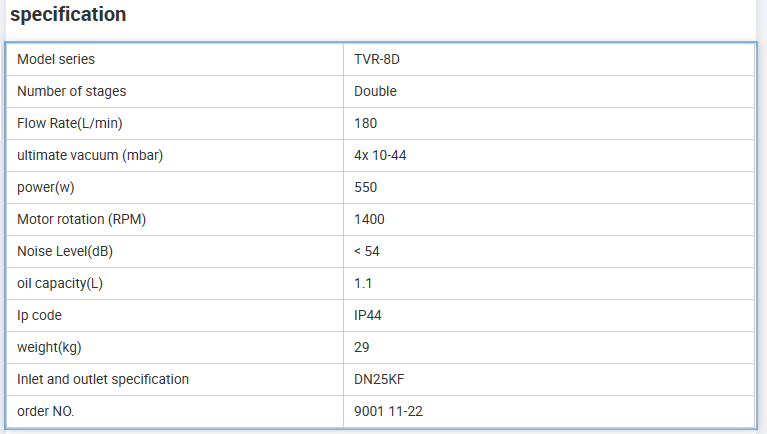

Type :
TVR-8DMotor power :
550WNoise level :
< 54Ultimate vacuum :
4x 10-44Product weight :

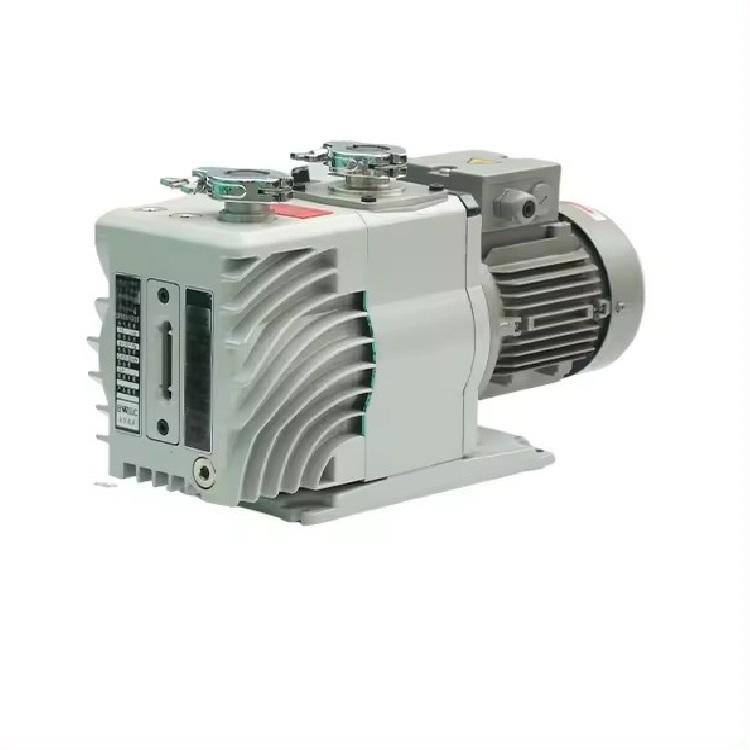

29KG oiill-sealed Rotary vane vacuum pumps are widely used traditional vacuum pumps in research and production, can be used inde
pendently, as well as working as backing pumps for molecular pumps or diffusion pumps. direct driven rotary vane pumps are
available asone andtwo-stageversions,coverthe rangefrom desktop lab pumps to production line pumps, with low noise and stable
working temperature for common voltages and frequencies, long lifespan, and outstanding reliability for chemical applications.
various application areas may include vacuum distillation, vacuum filtration ,vacuu m inspection ,vacuu m freeze drying, vacuum
coating, vacuum leakdetection,vacuum packaging, vacuum adsorption, etc.
peculiarity > Compact structure > Very good sealing > Do not return throughput > Oil spill prevention > Low noise > Oil viewing window > Handles for easy transportation > High flow > Low and stable limiting vacuum > High resistance to evaporation > Relatively high chemical resistance > High life > Low maintenance rate > Low oil mist > Gas ballast valve > Overcurrent protection > Compliant with SIP54 standards
Application field > Vacuum distillation > Vacuum filtration > Vacuum Test > Vacuum freeze-drying > Vacuum plating > Leak Detection > Vacuum packaging > Vacuum adsorption > As an auxiliary pump for turbomolecular or diffusion pumps
