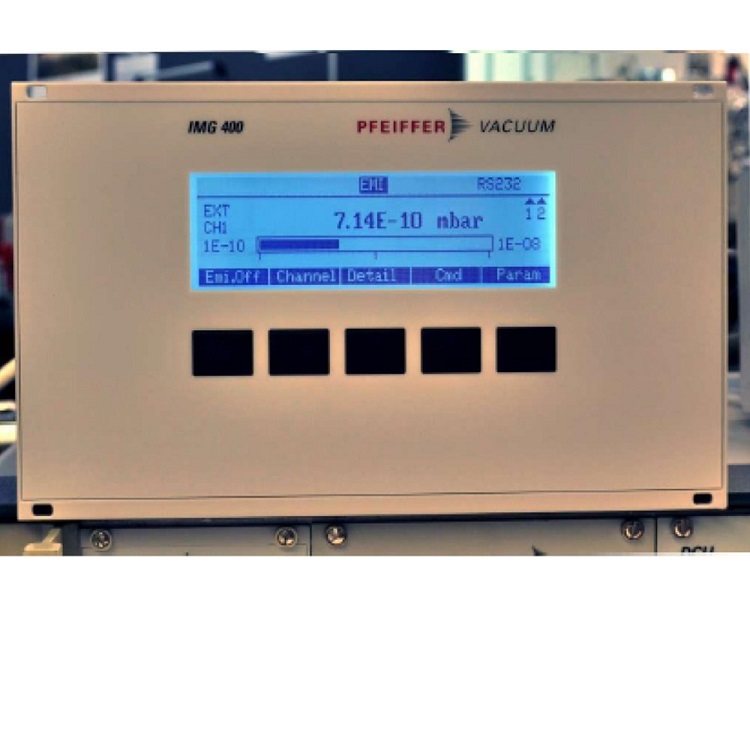

The modular gauge display controller IMG 400

The modular gauge display controller IMG 400
The modular gauge display controller IMG 400
The modular gauge display controller IMG 400

The modular gauge display controller IMG 400

Product description  The modular gauge display controller IMG 400, measuring range from one atmosphere up to 2X10-12 hPa, is suitable for displaying and controlling the modular gauges IMR 420 and IMR 430

  • Item NO :

    IMG 400

Inquire Now

The modular gauge display controller IMG 400





Product benefits of the modular gauge display controller IMG 400:

1. Modular IMR 420 and IMR 430 can be connected simultaneously (only one display can be controlled at a time)

2. Capacitive film gauges CMR 361, CMR 362, CMR 363, CMR 364, CMR 365 or Pirani gauges TPR 270, 271, 280, 281 can be connected

3. Standard RS 232 C, 2 relays

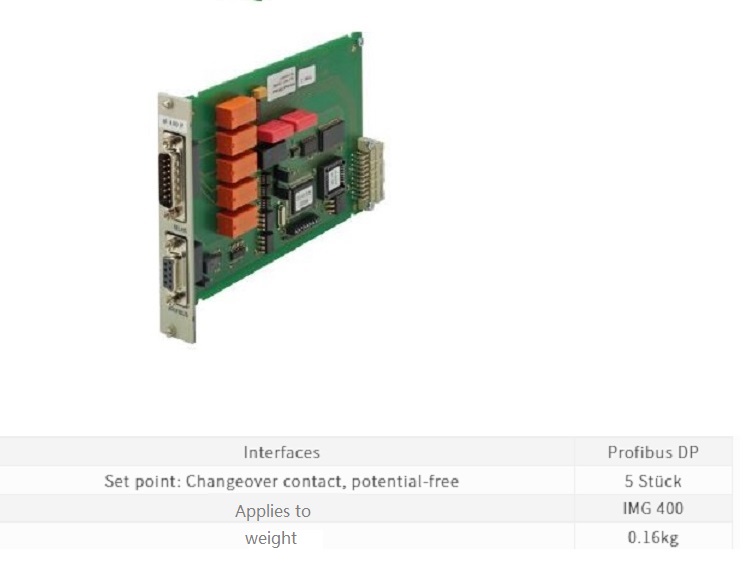

4. Optional IF 400 P card, (Profibus-DP interface, 5 relays



Technical data of the modular gauge display controller IMG 400:

Display rate

4 Hz

Applicable vacuum gauge models

IMR 420,IMR 430,TPR 270,TPR 280,CMR 36x

Interfaces

RS-232

Power requirements: Frequency range

47 – 63 Hz

Power requirements: Power

300 W

Power requirements: Voltage

90 – 264 V AC

Maximum measuring range

1.1 X 103 hPa

Minimal measuring range

2 X 10-12 hPa

Output signal

0-10V

Level of protection

IP20

Switch point: switching contact, no potential

2 Stück

Operating temperature

5 – 45 °C

Weight

3kg
