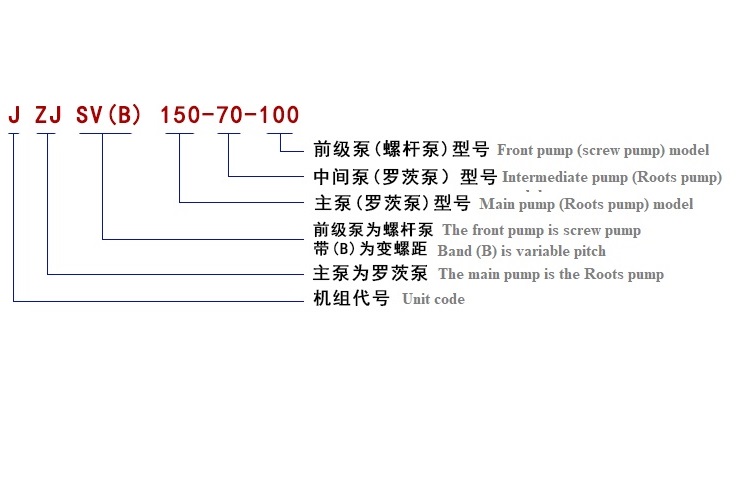

JZ JSV (B) Roots screw complete vacuum unit

Inquire Now

Product Details

JZ JSV (B) series Roots screw vacuum unit has the characteristics of high vacuum, fast pumping speed, long service life, good safety, high efficiency and energy saving. The overflow parts of rots vacuum pump of this unit are made of Harbin alloy, and the front screw vacuum pump is made of cast iron, which can obtain ultra-high vacuum below 0.1Pa, and the pumping speed reduction is small under high vacuum.

JZJSV (B) series roots screw vacuum unit has the characteristics of ultra high vacuum, fast pumping speed, long service life, good safety, high efficiency and energy saving. The overflow parts of rots vacuum pump of this unit are made of Harbin alloy, and the front screw vacuum pump is made of cast iron, which can obtain ultra-high vacuum below 0.1Pa, and the pumping speed reduction is small under high vacuum.

The unit is widely used in pharmaceutical, chemical, food and other industries of vacuum conveying material, refining, distillation, concentration, vacuum packaging, drying, gas analysis, tail gas recovery and other occasions.

product model	pumping rate	extreme pressure	Vacuum pump model				Vacuum pump model		aggregate capacity	Intake caliber	Exhaust caliber
product model	（L/S）	（Pa）	Vacuum pump model				Vacuum pump model		（kw ）	(mm)	(mm)
			main pump	power	line pump	power	backing pump	power
			main pump	（kw ）	line pump	（kw ）	backing pump	（kw ）
JZJSV(B)-70-70	70	≤1	ZJC-70	2.2			SVPB-70	5.5	7.7	65	50
JZJSV(B)-150-70	150		ZJC-150	3			SVPB-70	5.5	8.5	65	50
JZJSV(B)-150-100	150		ZJC-150	3			SVPB-100	7.5	10.5	65	50
JZJSV(B)-300-100	300		ZJC-300	4			SVPB-100	7.5	11.5	100	50
JZJSV(B)-300-130	300		ZJC-300	4			SVPB-130	11	15	100	65
JZJSV(B)-300-180	300		ZJC-300	4			SVPB-180	15	19	100	80
JZJSV(B)-150-70-70	150		ZJC-150	3	ZJC-70	2.2	SVPB-70	5.5	10.7	65	50
JZJSV(B)-150-70-100	150		ZJC-150	3	ZJC-70	2.2	SVPB-100	7.5	12.7	65	50
JZJSV(B)-300-150-100	300		ZJC-300	4	ZJC-150	3	SVPB-100	7.5	14.5	100	50
JZJSV(B)-300-150-130	300		ZJC-300	4	ZJC-150	3	SVPB-130	11	18	100	65
JZJSV(B)-300-150-180	300		ZJC-300	4	ZJC-150	3	SVPB-180	15	22	100	80
