XDS series dry scroll pump XDS35i, XDS35iE, XDS46i

Product characteristics

Bearing cover

It can ensure that the process gas is separated from the bearing cleanser phase to ensure a clean vacuum environment and avoid pollutants in the process gas entering the lubricant, thus extending the service life of the bearing.

Frequency converter drive

System performance is the same worldwide, with poly overload protection and remote start/stop function

High flow gas ballast characteristics

Steam (including water vapor) can be extracted at speeds up to 240 g h-¹.

Unique axial air gap motor

The overall pump size is reduced, and the power and noise are reduced

Simple single-ended double vortex design

Maintenance can be done in minutes, reducing operating costs and maximizing uptime.

Double entry and bypass width technology

XDS35iE is suitable for large cavity pumping to prevent excessive gas compression, improve the efficiency and pumping speed of polymerization, and extend the service life of bearings.

1.

Diese Pumpen sind nicht für Flüssigkeiten, staubhaltige Gase oder korrosive Gase geeignet.

2.

Das Netzkabel ist nicht im Lieferumfang enthalten und muss je nach regionalem Steckertyp separat erworben werden.

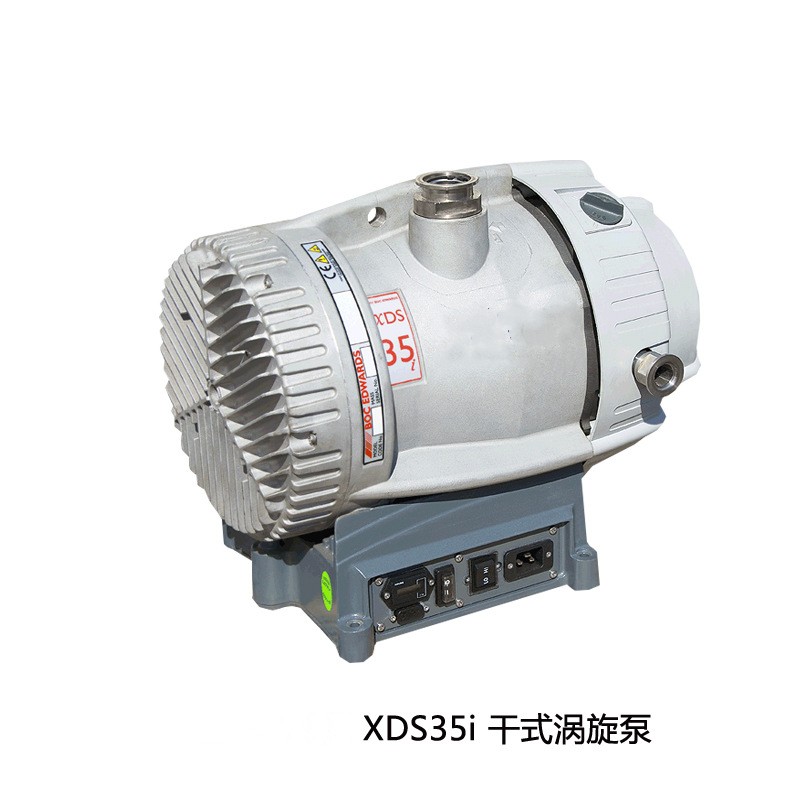

XDS35i 100-120/200-230V 1 ph 50/60 Hz set to 230V A73001983

XDS35i NGB 100-120/200-230V 1 ph 50/60 Hz set to 230V A73005983

XDS35iC 100-120/200-230V 1 ph 50/60 Hz set to 230V A73006983

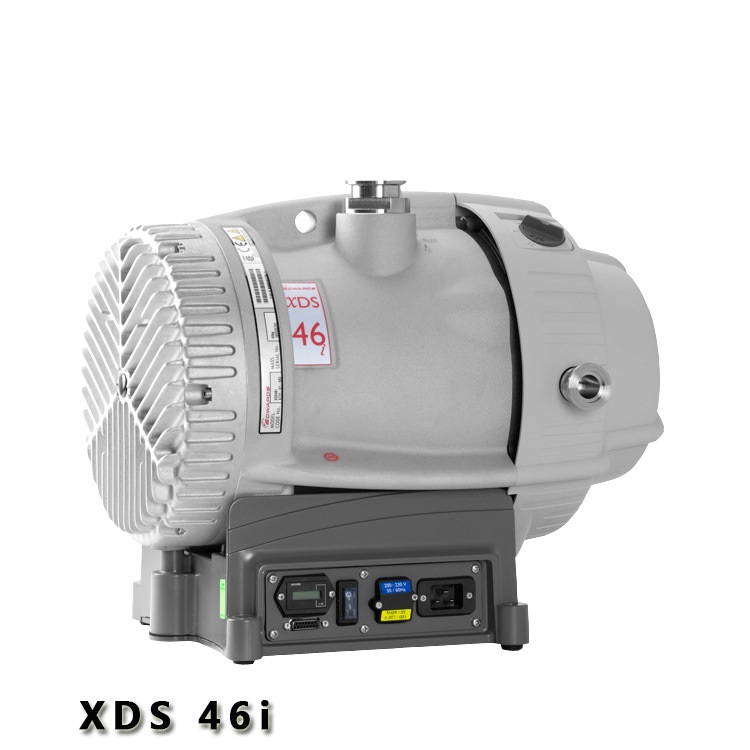

XDS46i 100-120/200-230V 1 ph 50/60 Hz set to 230V A73101983

XDS46iC 100-120/200-230V 1 ph 50/60 Hz set to 230V A73106983

XDS Accessories

Product description Order no:

Exhaust silencer XDS35i A50597001

Gas Ballast Adapter with 0.25 mm hole A50626801

XDS NW25 Inlet Outlet filter A50597805

XDS NW40 Inlet Outlet Filter A50597806

XDS Filter 5 micron Element kit A50597802

XDS Filter 1 micron Element kit A50597803

Vibration Isolator A24801408

XDS kits

Product description Order no:

Tip seal kit XDS35i A73001801

Tip seal kit XDS46i A73101801

Silencer spares kit A50597801

Electrical Supply Cable

Product description Order no:

2 m Electrical supply cable, no plug A50508003

2 m Electrical supply cable, North America/ Japan plug A50507003

2 m Electrical supply cable, North European plug A50506003

2 m Electrical supply cable, UK, three-pin plug A50505003
