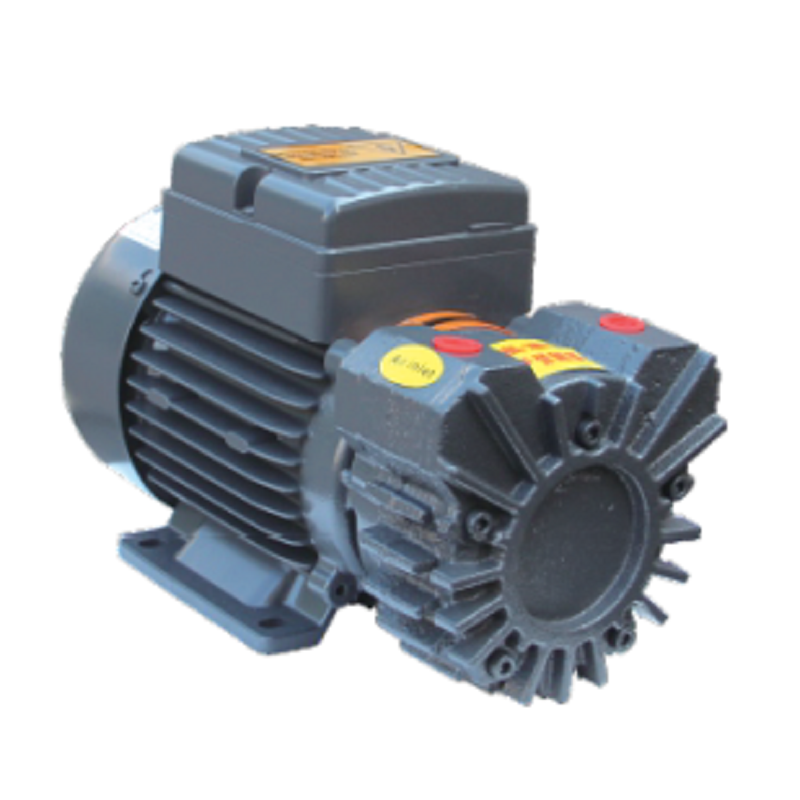

TXV3 oil free rotary vane vacuum pump

Application fields:

Automation equipment, light splitter, SMT, ribbon knitting machine, printing, manipulator grabbing industry, etc. Remove clean air and other dry, non-toxic, non corrosive and non explosive gases.

Attention!

● please ensure that the vacuum pump is placed horizontally, with a maximum of 1 in either direction.

● inhale foreign solid particles or liquids, and be careful to damage the vacuum pump. If the extracted gas contains dust or other foreign solid particles, make sure to install a suitable filter at the air inlet of the vacuum pump.

● the vacuum pump blade is self-lubricating and high-temperature resistant. It does not need vacuum pump oil or water as the medium. Do not inject oil or water into the pump. Injecting oil or water into the vacuum pump will seriously damage the vacuum pump.

● the carbon sheets of the vacuum pump are environmentally friendly, pollution-free, and operate for a long time. After the self-lubricating carbon sheets in the vacuum pump are worn, slight carbon particles will be discharged from the exhaust port (our products are equipped with exhaust port silencers, which can be filtered at the primary level)

● pumping out other media will increase the thermal load and mechanical load of the vacuum pump. Such use is not allowed unless approved by the company..

● this vacuum pump can be used for continuous work, but it is not allowed to start frequently (the maximum allowable number of starts per hour is no more than 10). If it is not used for a long time, it should be protected against moisture and corrosion.

Technical parameters:
