2TX9 single stage vortex air pump

2TX9 single stage vortex air pump
2TX9 single stage vortex air pump
2TX9 single stage vortex air pump

2TX9 single stage vortex air pump

The impellers are mounted directly on the motor shaft for noncontact compression entirely without friction.Maximum operational reliability, even at high differential is ensured by the arrangement of the bearings outside the compression chamber. The gas it taken in though the inlet1.As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase .Every rotation adds kinetic energy. Resulting in the further increase of the pressure along the side channel .The side channel narrow at the rotor,sweeping the gas off the impeller blades and discharging it though the outlet silencer 4 where it exits the side channel blower.

  • Item NO :

    2TX9-910-H07

  • Type :

    Vortex air pump

Inquire Now

100% oil free compressed gas, water ring vacuum pump, motor, all are the protection class IP55, class F insulation  dual frequency (50/60HZ) and wide voltage can meet almost all regions of the world the voltage level, the external design of the bearing, can bear high working temperature, improves the reliability and service life

 the introduction of variable frequency drive new concept, than the maximum performance can be driven by a common motor is improved to 300%, impeller and pump body seal forms the unique reduced pressure gas pressure loss in the process of compression

 pump casing, impeller die-casting molding, sturdiness and durability, excellent heat dissipation, imported Japan Germany, precision machine tool cutting, ensure the accuracy and quality, air pump through the surface of protective paint processing

 products through the strict mechanical, electrical performance test, simulation demonstrate the use of PROE, UG, CAD and other computer aided design software and motion

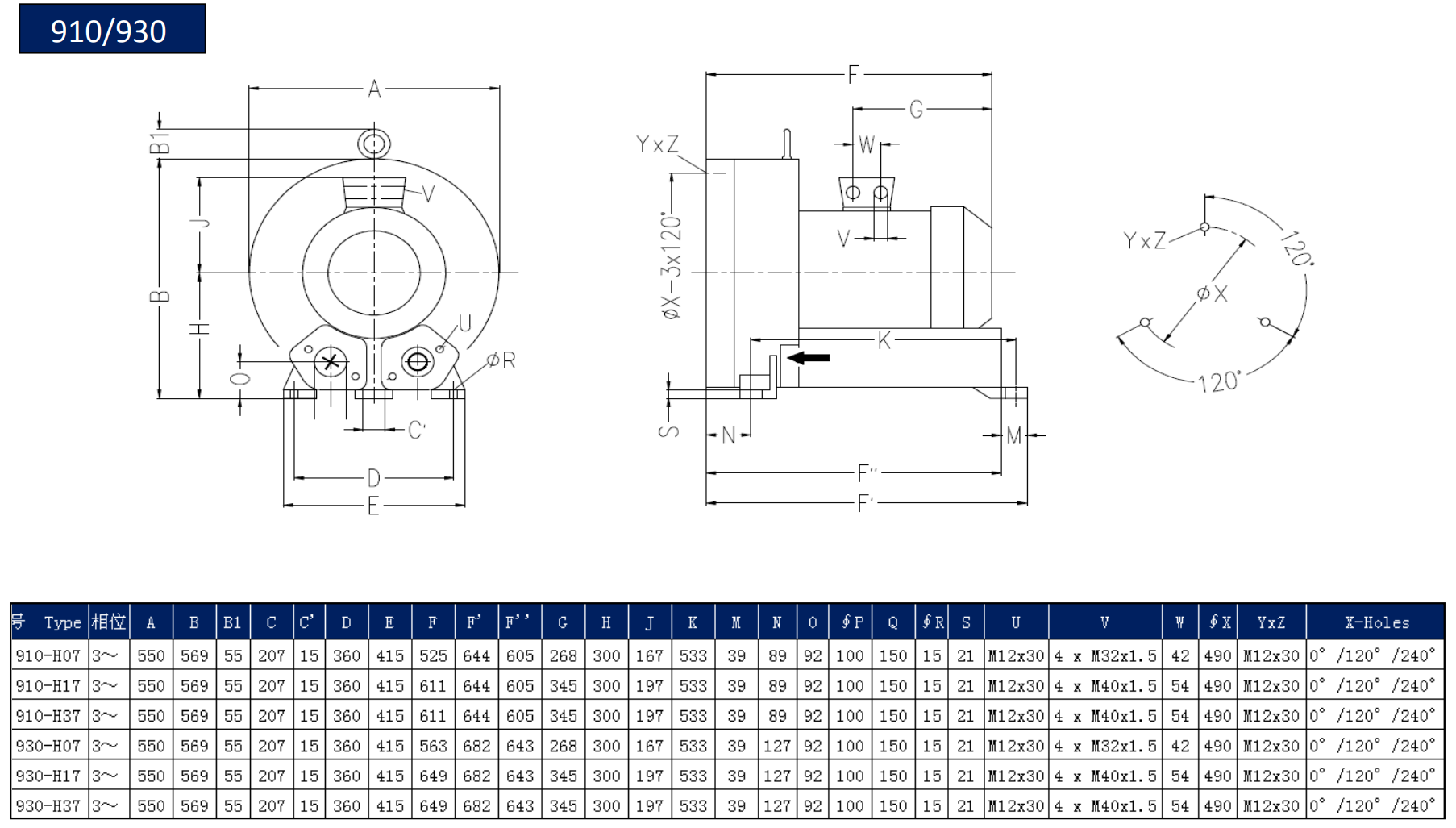

  Single stage mounting dimensions
