Save more than 35% of the electricity
● Permanent magnet / frequency conversion adjustment principle
Permanent magnet frequency conversion dual-stage vacuum pump is to adjust the speed of the vacuum pump drive according to the actual gas consumption change, and the energy is effectively saved, energy saving and environmental protection
Intelligent control, effectively improve work efficiency
● low noise
Not afraid of equipment interference when working. Low-noise process 65DB~78DB. Low noise, high power. Noisy away from the working environment damages ear health
● atmospheric volume
Full of power and stable performance
● all-in-one host
Volume and weight are far less than the ordinary motor assembly
● Motor high efficiency and low temperature rise

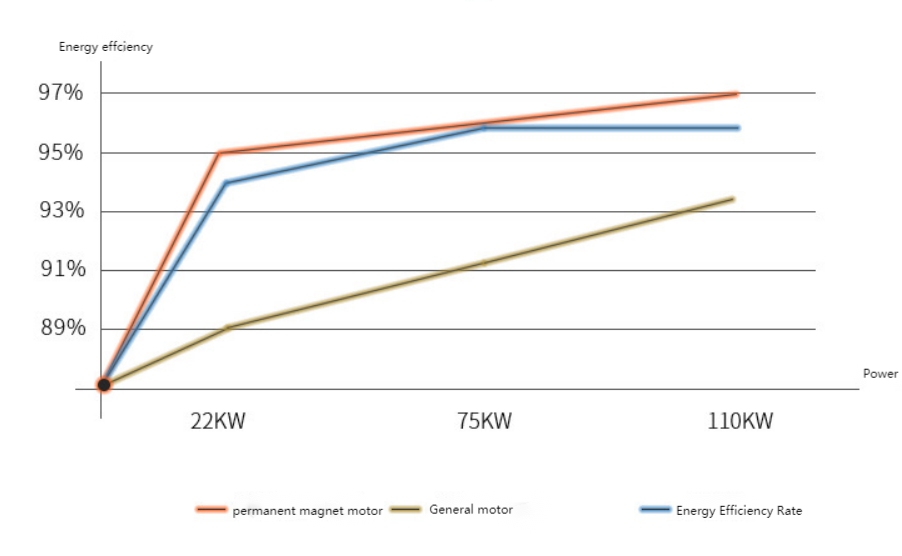

The efficiency of permanent magnet frequency conversion motor is 3% -8% higher than that of ordinary motor

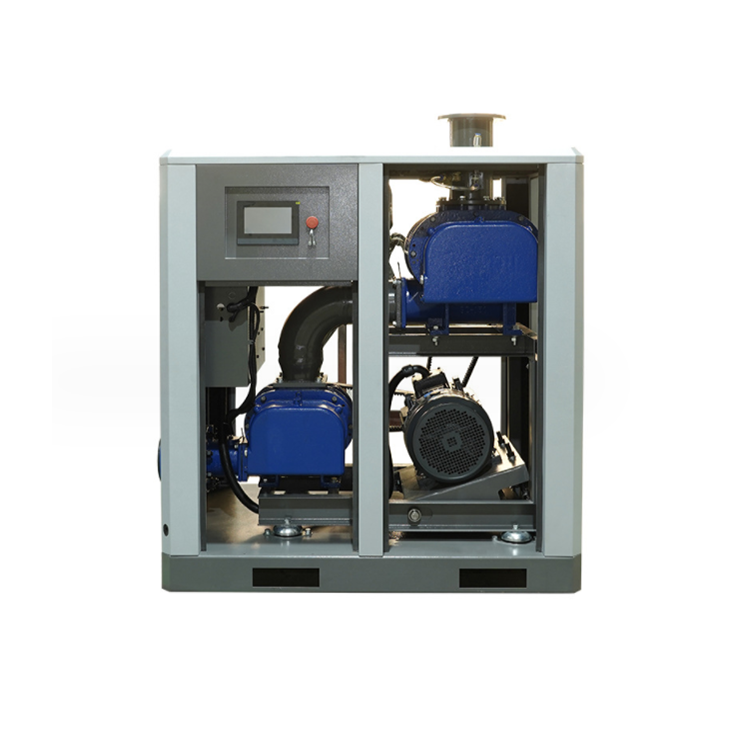

2. Structural details
01 Oil-free host
OIL FREE MAIN ENGINE
Using large rotor low speed, comprehensive sealing oil seal, no wear maze, super temperature coating design, high temperature operation life!

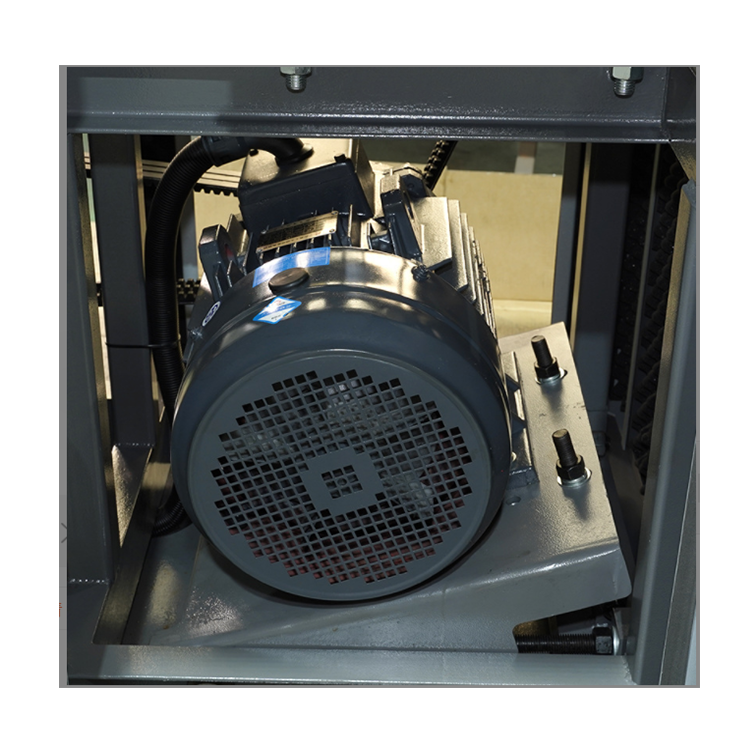

02 Permanent magnet motor
OIL FREE MAIN ENGINE
High temperature stable magnetic materials, low demagnetization risk, can achieve soft start, the operation is the motor current will not exceed the full load current
03 Intelligent control
OIL FREE MAIN ENGINE
Intelligent real-time monitoring, improve the operability of vacuum pump, equipped with 485 interface, to realize remote and interlock.
04 Air filter
OILFREE MAIN ENGINE
Pre-filter design, keep the interior of the machine clean, extend the maintenance cycle, disassembly and clean, can be reused.
05 Intelligent frequency converter
OIL FREE MAIN ENGINE
Support the connected control program, reduce the system networking cost, the full power section built-in DC reactor, can protect the performance, to meet the power grid instability, low voltage occasions.
06 Sensor
OIL FREE MAIN ENGINE
The signal processing adopts 0.01% conditioning circuit technology, strictly tests the transmitter with high accuracy, good stability, strong anti-interference ability, protection grade IP65
07 Silent exhaust
OIL FREE MAIN ENGINE
Cooling fan frequency conversion control, control the fan speed according to the exhaust temperature, inhibit power waste, stabilize the system and the overall component temperature, improve the durability of the components.
Suitable for more fields, to meet a number of industries. For example, electronic manufacturing industry, plastic absorption industry, paper industry, printing industry, photoelectric industry, textile factory industry, paper support industry, sewage treatment and so on.
